Control Box

Q-NEX Control Box

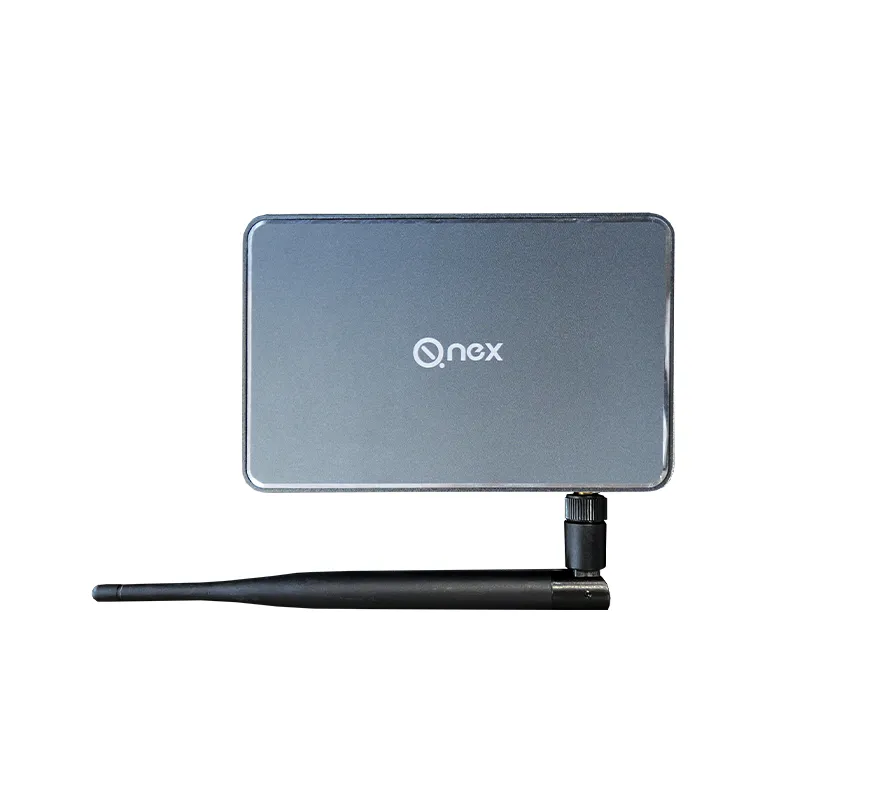

As the wireless control module of Q-NEX Networked Media Processor, Q-NEX Control Box (CBX) easily realizes the remote control of campus electric devices (e.g. air conditioners, lights, electric curtains, projectors and monitors) through 2.4GHz wireless transmission. No need for wiring or changing existing electric lines, its wall-mounted design provides convenient and fast installation with stable and reliable performance.
Control Box - Hardware CBX 02

Product Overview

Connection Diagram

Control Box - Hardware CBX 12 scaled
(Click on the image for more details)

Product Features

Wireless Connection
Connect to Q-NEX Networked Media Processor through 2.4G wireless transmission. Convenient installation without wiring or change of existing electric lines.
Unified control
Remote control anytime and anywhere on unified Q-NEX Console through Internet.
Multiple control interfaces

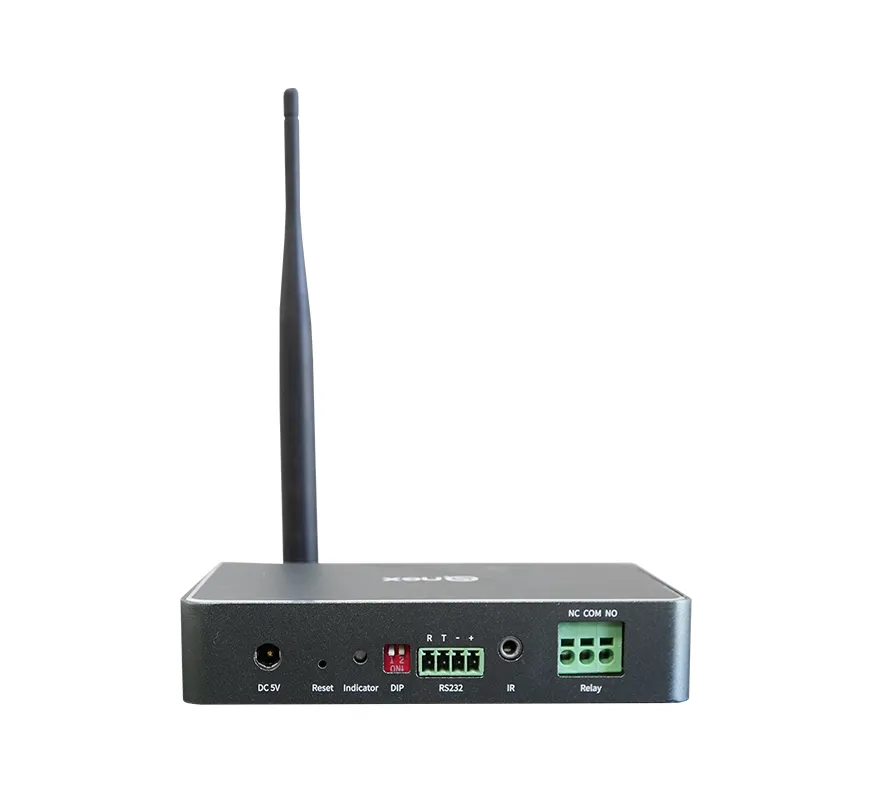

Wireless control of various devices with RS232, IR, and Relay interfaces.
Device control extension for Q-NEX NMP211/NMP221
CBX is an extension of control interfaces of NMP, and each NMP can be connected to 4 additional CBXs.
Parameters
Model CBX100
AC power supply 90-300VAC
Input power consumption <3W
Working environment -20°C~85°C
WiFi IEEE 802.11 b/g/n 1T1T 2.4GHZ
Relay interface SPDT
Maximum load (resistance) 250VAC,10A
Maximum switching power 2500VA
Communication interface 1*RS232,1*IR remote control
